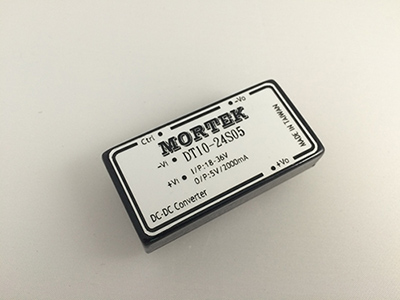

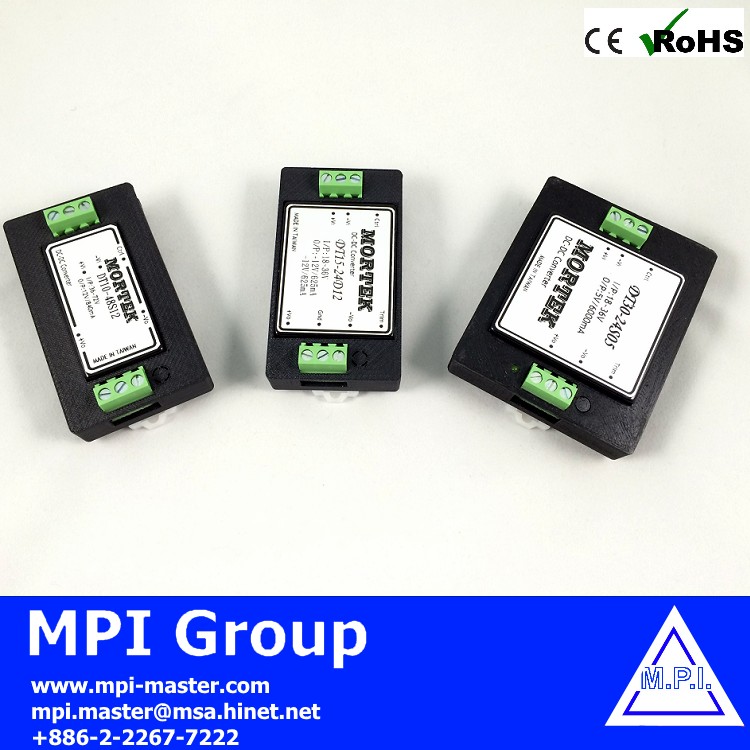

10W DIP DC-DC Converter
Features: 10 Watts output power Wide 2:1 DC input range Standard 2.0" × 1.0" × 0.4" package 5-sided continuous shield Fixed switching frequency at 300KHz Built-in remote ON-OFF control (option) 1500 Vdc input to output isolation High efficiency to 82% High reliability Protections:Short circuit, Over load, Over voltage
Add to inquiry
Product Introduction
|
DT10series DC/DC converter |
|
|
|
Applications:
|
Features:
|
|
.jpg)

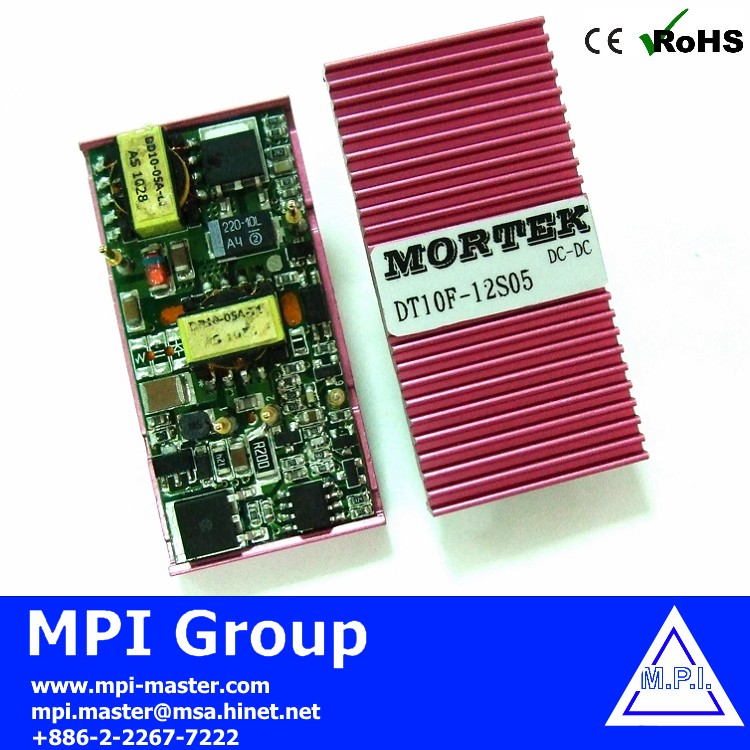

Description
The DT10 series offer 10 watts of output power form a 2.0" × 1.0" × 0.4" package.
DT10 series have 2:1 wide input voltage of 9.5 ~ 18, 18 ~ 36 and 36 ~ 72Vdc.
The DT10 series are isolated, forward topology DC-DC converters
Input Specification
|
Model number |
Typ. |
Input range |
Unit |
|
DT10-12SXX |
12 |
9.5 ~ 18 |
Vdc |
|
DT10-24SXX |
24 |
18 ~ 36 |
|
|
DT10-48SXX |
48 |
36 ~ 72 |
Output Specification
|
Model number |
Voltage |
Unit |
current |
Unit |
|
DT10-XXS03 |
3.3 |
Vdc |
2500 |
mA |
|
DT10-XXS05 |
5 |
2000 |
||
|
DT10-XXS09 |
9 |
1100 |
||
|
DT10-XXS12 |
12 |
840 |
||
|
DT10-XXS15 |
15 |
670 |
||
|
DT10-XXS24 |
24 |
420 |
General Specification
|
Output power |
10 Watts Max. |
|
|
Minimum load |
0 mA |
|
|
Isolation voltage |
1500 Vdc Min. |
|
|
Isolation resistance |
100M ohm Min. |
|
|
Isolation capacitance |
1000 pF |
|
|
Switching Frequency |
300 KHz Typ. |
|
|
Case material |
Copper |
|
|
Dimensions |
2.0 ×1.0 × 0.4 inch |
|
|
50.8 ×25.4 × 10.2 mm |
||
|
Weight |
31g |
|
|
Idle current |
20 mA Typ. |
|
|
Load regulation (no load to full load at nominal input) |
±1% |
|
|
Over voltage protection clamp by zener diode |
Output voltage |
Zener diode |
|
3.3V |
3.9V |
|
|
5V |
6.2V |
|
|
9V |
11V |
|
|
12V |
15V |
|
|
15V |
18V |
|
|
24V |
27V |
|
|
Over load protection (nominal input) |
150% Max. |
|
|
Environment |
Working Temp. |
-25oC ~ +70oC |
|
Working Humidity |
0% ~ 95% |
|
|
Storage Temp. |
-40oC ~ +105oC |
|
|
Storage Humidity |
0% ~ 95% |
|
|
MTBF (Ta = 25oC) |
50K hours |
|
Applications
